NANOTUBES

PRODUCTS

BY MATERIAL

BY APPLICATION

PRODUCT SAFETY

CONTACTS

Coatings

Paints & Coatings

<p>Ensures permanent, uniform conductivity without insulative zones or “hot spots”</p>

Electrical conductivity

<p>Maintains or even increases mechanical strength</p>

Mechanical performance

<p>Allows retention of a high level of transparency</p>

High transparency

<p>The form of dispersion greatly simplifies the usage of nanotubes with no changes to standard formulation or mixing equipment</p>

Easy to handle

<p>Minimizes the impact on viscosity and density of the host material</p>

Retained rheological performance

PRODUCT

<ul><li>Low resistivity level with high transparency maintained</li><li>Permanent and stable level of      resistivity</li></ul>

REQUIREMENTS

<p>A 30&nbsp;wt.% dosage of TUBALL<strong>™</strong> COAT_E H<sub>2</sub>O 0.4% (SDBS) was introduced into a water-based polyurethane layer with a thickness&nbsp;of less than 1 μm</p>

TUBALL™ SOLUTION

<ul>
	<li>Permanent anti-static      performance</li>
	<li>Surface resistivity of 10<sup>7</sup> Ω/sq</li>
	<li>Transparency of 90%</li>
	<li>Reduced coating times</li>
	<li>Cost reduction</li>
</ul>

KEY BENEFITS

TUBALL™ for TRANSPARENT ANTI-STATIC PET FILM

Anti-static Transparent Film

<p>Versatile suspension of graphene nanotubes.</p>
<p>The price of our nanotube products is determined by the quantity. Reach out to us for a personalized offer.</p>

TUBALL COAT_E H2O PROCESSING GUIDE ENG V07.PDF

TUBALL COAT_E SOLVENT-BASED PROCESSING GUIDE ENG V05.PDF

TUBALL COAT_E LATEX PET FILM APPLICATION CASE #EXTENDED ENG V02.PDF

TUBALL COAT_E UV COATING APPLICATION CASE #EXTENDED ENG V01.PDF

TDS TUBALL COAT_E 506A ZHO V03.PDF

TDS TUBALL COAT_E 506A ENG V03.PDF

TUBALL COAT_E 501 ROTOMOLDING PROCESSING GUIDE ENG V03.PDF

TDS TUBALL COAT_E 501A ENG V07.PDF

TDS TUBALL COAT_E 501A ZHO V06.PDF

TDS TUBALL COAT_E 502A ENG V08.PDF

TDS TUBALL COAT_E 503A ENG V06.PDF

TDS TUBALL COAT_E 503A ZHO V06.PDF

TDS TUBALL COAT_E 505A ENG V03.PDF

TDS TUBALL COAT_E 505A ZHO V03.PDF

Bottle

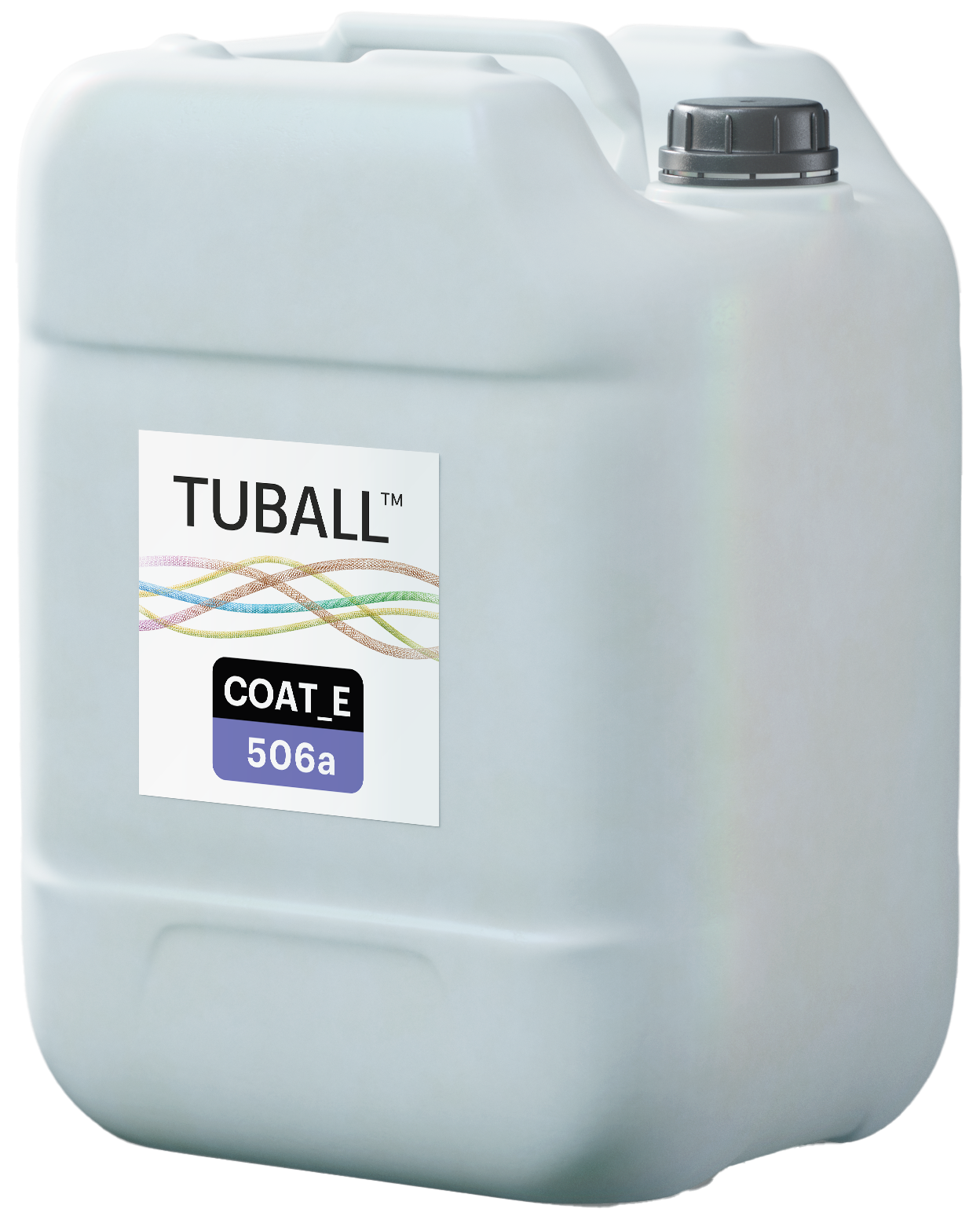

Jerrycan

20 L

Barrel

200 L

Versatile suspension of graphene nanotubes

COAT_E

Ensures permanent, uniform conductivity without insulative zones or “hot spots”

Maintains or even increases mechanical strength

Allows retention of a high level of transparency

The form of dispersion greatly simplifies the usage of nanotubes with no changes to standard formulation or mixing equipment

Minimizes the impact on viscosity and density of the host material

Acrylic

Adhesives

Binder

Paints

Plastics

Primers

Printing Ink

Suspension

Transparent Conductive Coatings

Transparent Films

AntistaticCoating

Coating

ConductiveCoating

ESDCoating

Paint

Primer

1 µm

Conductive acrylic: 0.01% of graphene nanotubes/single wall CNT enable conductivity, and retain durability & color. Outperforms carbon black and ammonium salts.

Conductive acrylic: anti-static agent for durability and color

Anti-static additive for conductive acrylic resin with maintained durability and color

Conductive epoxy: 0.01% of graphene nanotubes/SWCNT enables ESD, and retains durability and color. Outperforms carbon black, carbon fibers and ammonium salts.

Conductive epoxy: anti-static additive for durability and color

Anti-static agent for conductive epoxy resin with maintained durability and color

Epoxy

Conductive polyester: 0.01% of graphene nanotubes/SWCNT for ESD, and retained durability, color. Outperforms carbon black, carbon fibers, mica, ammonium salts.

Conductive polyester: anti-static agent for durability & color

Anti-static additive for conductive polyester with maintained durability and color

Polyester

Conductive polyurethane (PU): 0.01% of graphene nanotubes/SWCNT for ESD, and retained durability and color. Outperforms carbon black and ammonium salts.

Conductive polyurethane: ESD agent for durability and color

Anti-static additive for conductive polyurethane with maintained durability and color

Polyurethane

ESD agent for waterborne paints and coatings, epoxy and polyurethane resins. Graphene nanotube suspension for anti-static films, adhesives, inks, PSA films.
