TUBALL graphene nanotubes add electrical conductivity to lining coatings, while preserving mechanical properties and allowing light colors to facilitate visual inspections.
 |  |
The use of TUBALL graphene nanotubes conductive filler provides a full range of electrical resistivity of 108–104 Ω·cm, while allowing for a wide range of light colors to meet customer requirements, including facilitating visual inspections and more efficient servicing.
TUBALL nanotubes, in contrast to traditional conductive agents, maintain the mechanical properties of the original non-conductive epoxy coating, resulting in a high level of durability and a prolonged service life.

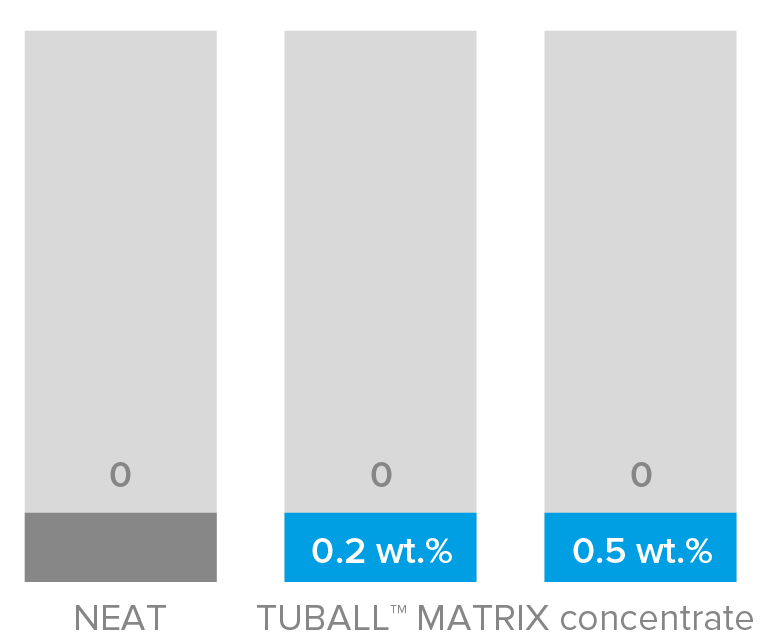

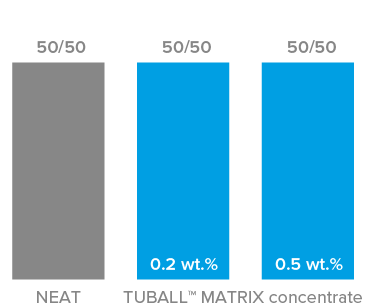

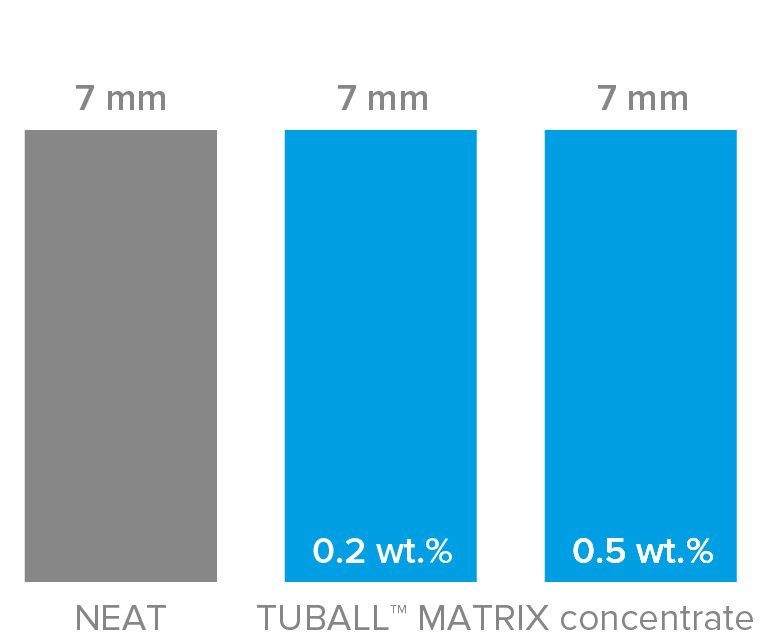

Preserved adhesion | Maintained impact resistance | Maintained resistance to cracking |
 |  |  |
ISO 2409. No detachment of coating from substrate after cross-cut adhesion test | ISO 6272. Full resistance to falling 1 kg weight indenter impact from 50 cm height directly to the coating and from the opposite side | ISO 1520. Full resistance of coating to cracking and detachment from a substrate by indentation to 7 mm depth |
TUBALL graphene nanotubes are applied via easy-to-use TUBALL MATRIX, which is a line of additives based on polymer carriers and pre-dispersed TUBALL graphene nanotubes. TUBALL MATRIX can be processed with standard equipment widely used in the coating industry:
 |  |  |
Standard single shaft | 25 min total | Quality control |

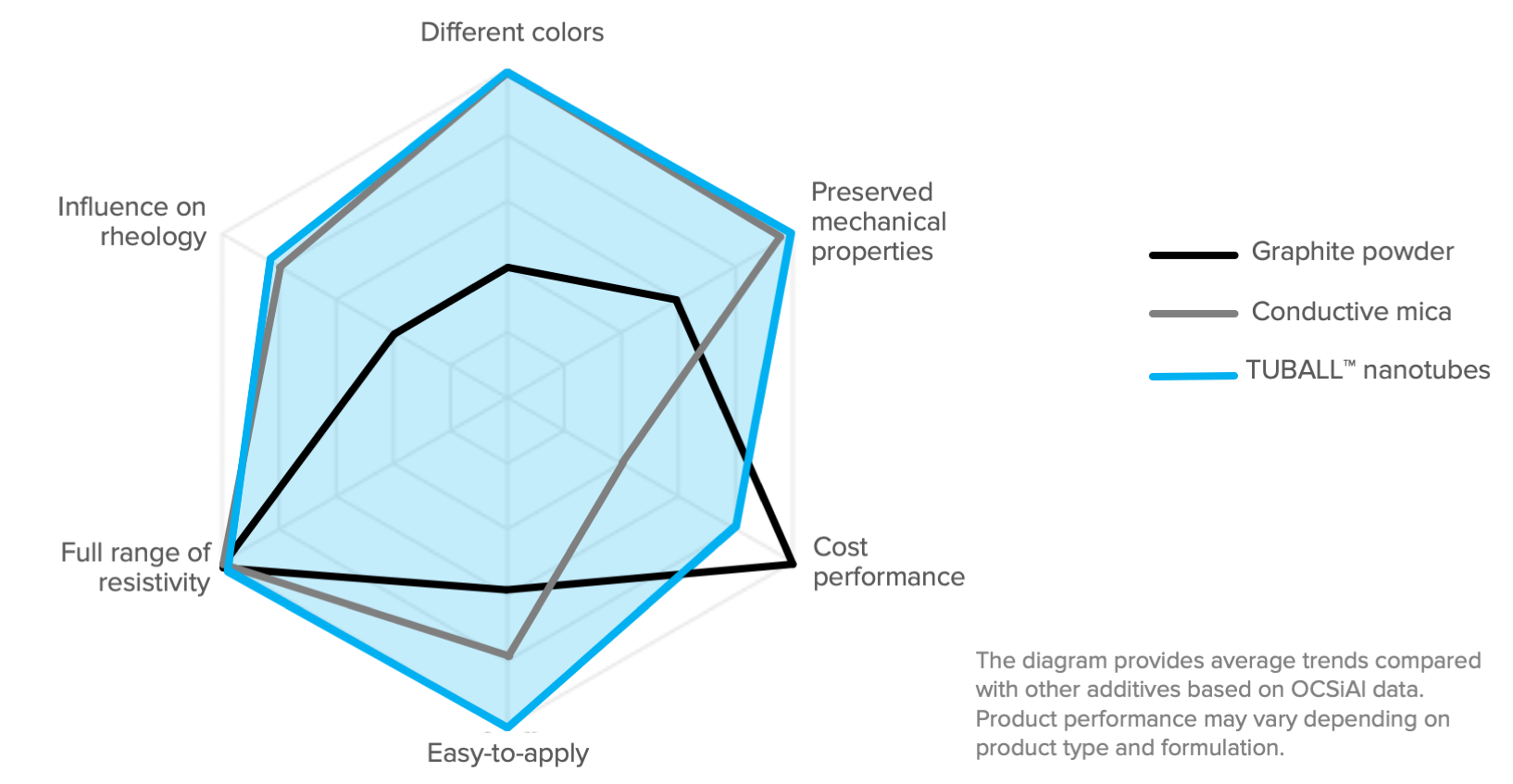

• Less influence on rheology compared to other conductive additives
• Low dosage gives greater flexibility in the final formulation and means less need for solvent usage
• Electrical resistivity stable over time and independent of humidity without “hot spots”
• Consistent quality for large industrial batches
• Ease of application and low dosage makes logistics less complex and more efficient
Target system | Solvent-free epoxy | Solvent-based epoxy | |||
Additive carrier | Plasticizer | Surfactant | Plasticizer & stabilizing agent | ||
Fatty acid glycidyl ester | Alkyl glycidyl ether | Ethoxylated alcohol | Fatty acid glycidyl ester, ammonium salt of polyolefins-based derivative | Alkyl glycidyl ether, ammonium salt of polyolefins based derivative | |
Product |  |  |  |  |  |
REGION
Europe
PRODUCT

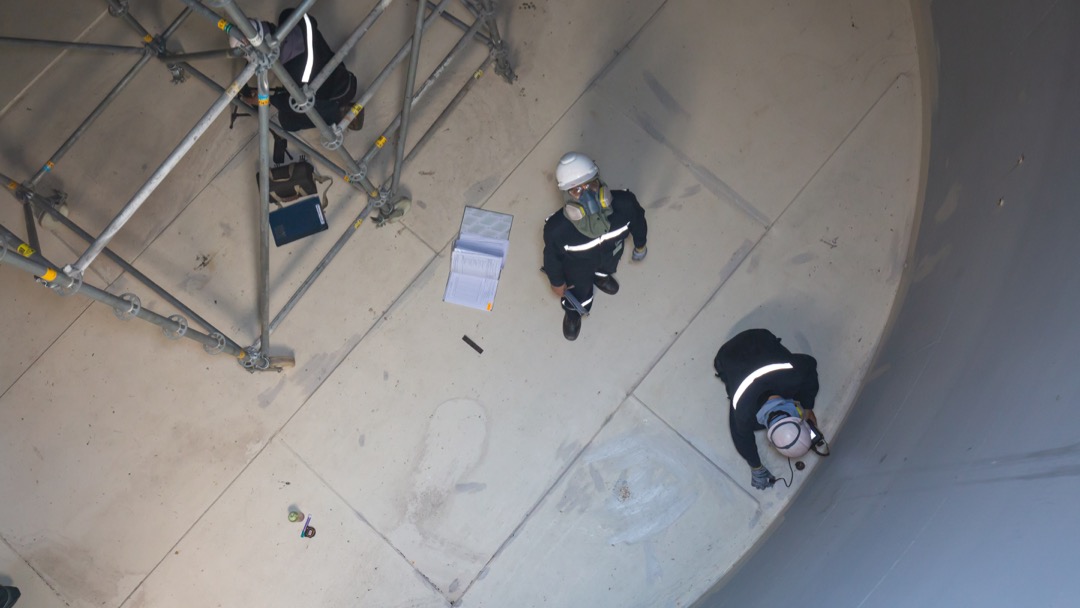

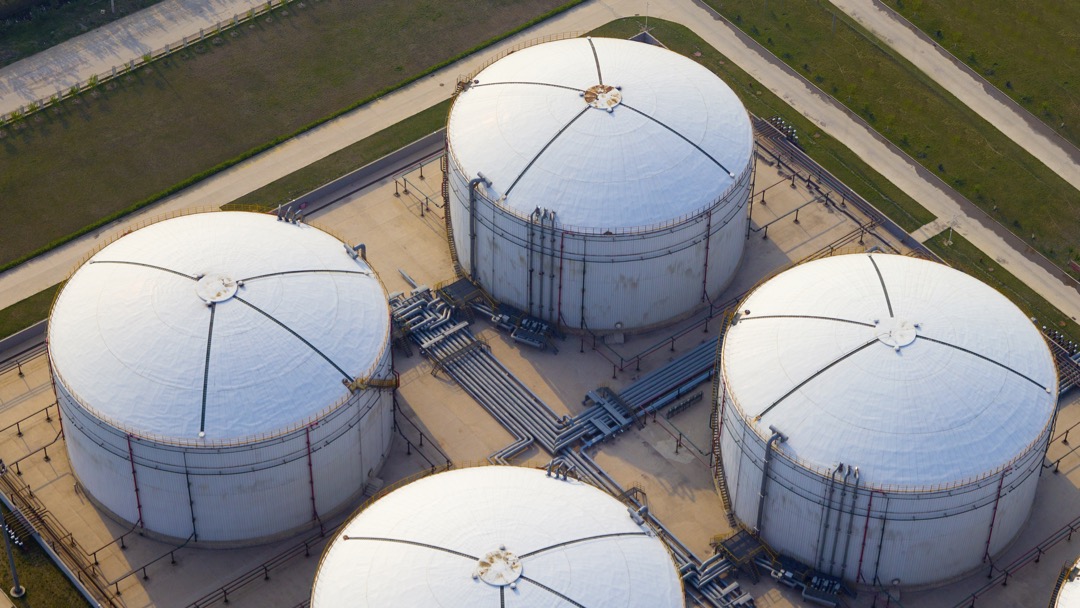

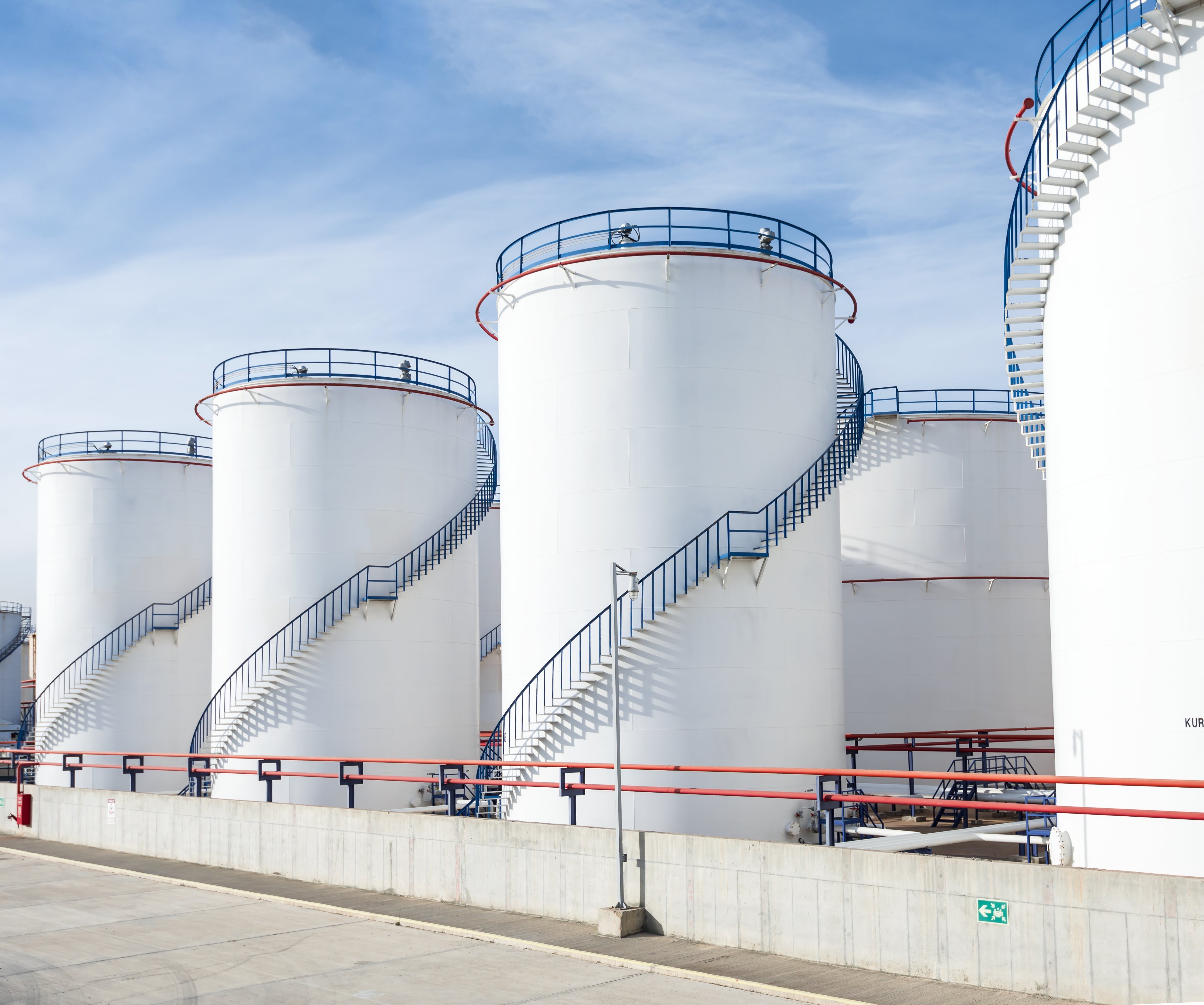

Conductive lining coatings for tanks for easily combustible materials
REQUIREMENTS
• Volume resistivity of 106–105 Ω·cm
• Permanent and stable level of resistivity
• Preserved light colors to facilitate visual inspections
TUBALL SOLUTION
20–30 wt.% of conductive mica in an epoxy system was replaced with 0.3 wt.% of TUBALL MATRIX 207
Other benefits valued by the customer:
Processing with standard equipment widely used in the coating industry
Contact us to discuss your project specifications or to request a TUBALL MATRIX sample.
