Anti-static additive for conductive phenolic resin with maintained durability and color

TUBALL™ graphene nanotubes (SWCNT) are a conductive filler with the best price-per-property performance in comparison with standard ESD additives, such as conductive carbon black, mica, carbon fibers and conductive polymers. Its ultra-low effective loading (starting from only 0.1% in the form of concentrate in the overall compound) is enough to create a uniform conductive and reinforcing network without a negative impact on the other key properties of a thermoset resin.

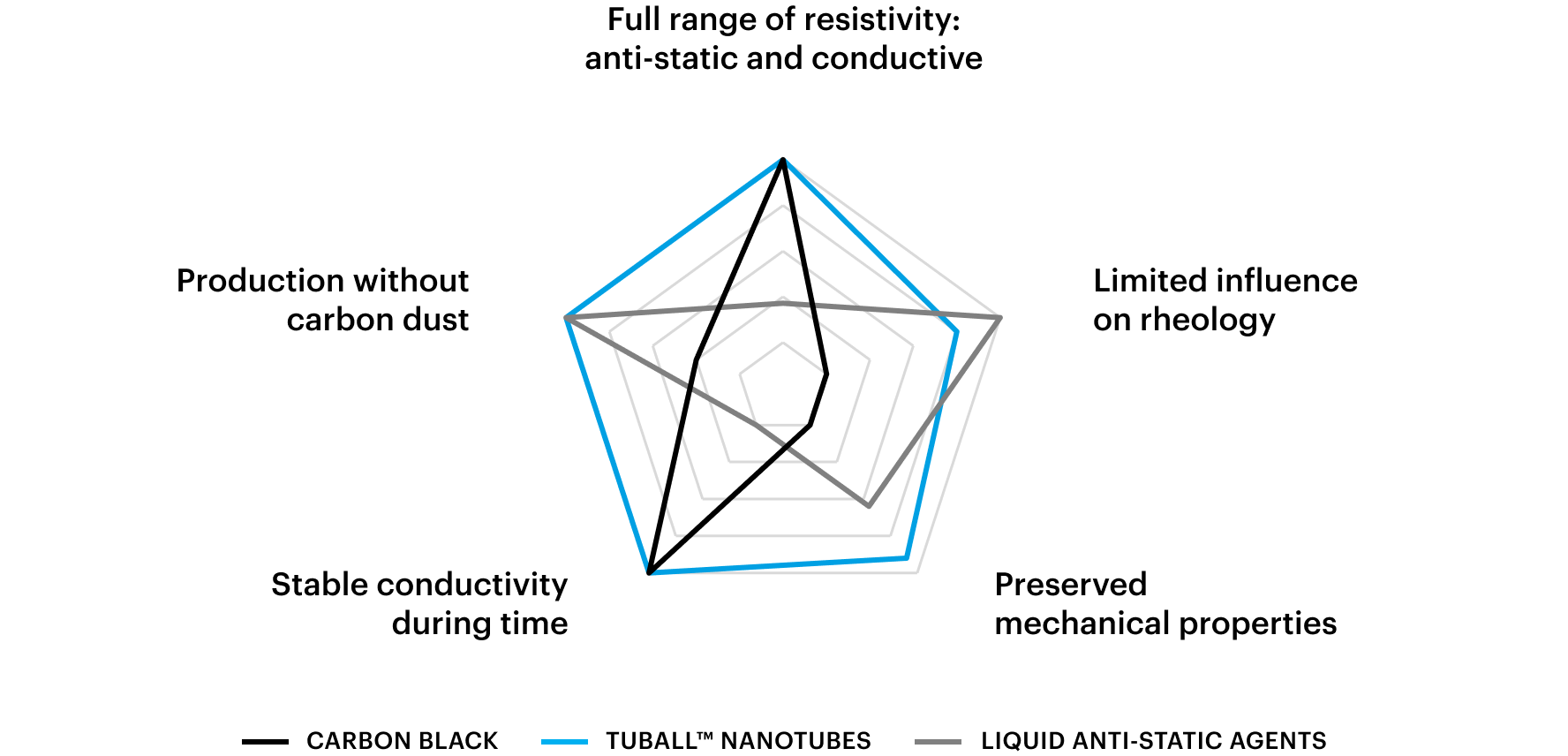

Anti-static agents: traditional vs TUBALL™

Note. This diagram provides average trends compared with other additives based on OCSiAl data. Product performance may vary depending on product type and formulation.

As even and homogeneous dispersion is key to achieving the desired properties, OCSiAl has developed TUBALL™ MATRIX – a line of concentrates that makes it easier to apply nanotubes in a standard manufacturing process and to adapt existing formulations.

TUBALL™ MATRIX anti-static masterbatch in phenolic systems offers the following benefits:

  • Guaranteed uniform, permanent conductivity
  • Preserved or even improved mechanical performance
  • Maintained original color of the compound
  • Minimal effect on density and viscosity
  • Easy adoption thanks to user-friendly concentrate form

TUBALL™ MATRIX meets key technical requirements

Parameter Ammonium compounds Carbon black TUBALL™ MATRIX
Working dosage, wt.% 0.2–4 4–12 0.1–0.5
Resistivity range, Ω/sq 108–1011 105–1011 104–1011

Influence on mechanical performance

small negative strong negative none
Influence on rheology none strong negative acceptable
Color opportunity possible none possible
Application via spray technology possible challenging possible
Dust formation during production none high none
Resistivity independent of humidity no yes yes
Stable resistivity over time no yes yes

Results for optimized formulation based on OCSiAl data.

For solvent-based and solvent-free phenolic formulations, OCSiAl has developed a line of TUBALL™ MATRIX concentrates. Explore more details by clicking on the product cards below or contact us to select the most effective solution.

Contact us to discuss your project specifications or to request a TUBALL™ MATRIX sample
