Carbon nanotube products
Jar
Packaging
Jar 0.6 L (up to 250 g)
Other packaging volumes are available at customers’ request
Silicone Rubber

TUBALLMATRIXMATRIX601MATRIX 601

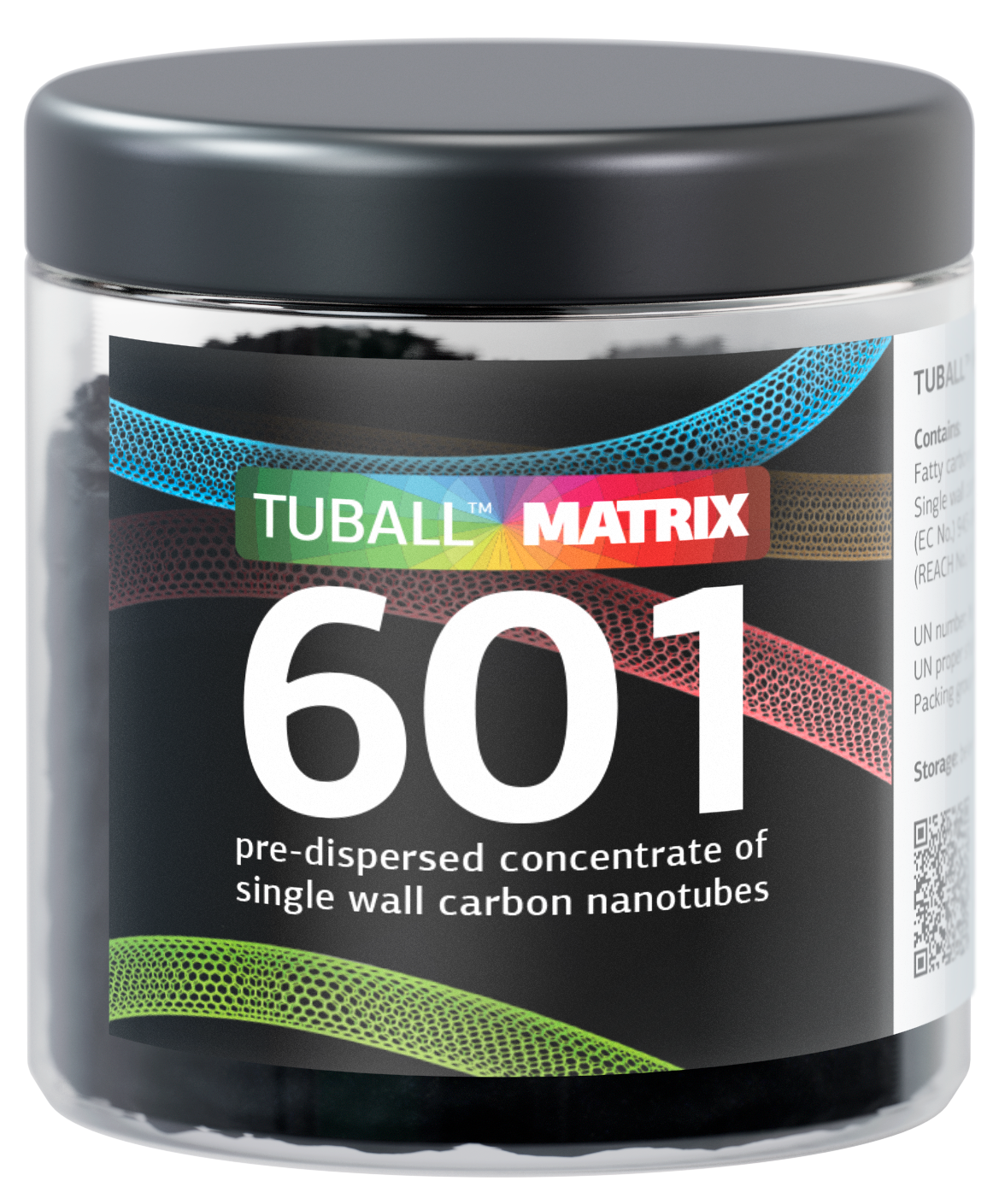

TUBALL™ MATRIX 601 is a graphene nanotube-based concentrate specifically designed to provide superior electrical conductivity to silicone compounds (LSR – liquid silicone rubber, RTV – room temperature vulcanized rubber) while retaining mechanical properties and minimally impacting the host matrix. TUBALL™ MATRIX enables ultra-low dosage of conductive filler for anti-static, static dissipative and conductive applications. Produce conductive compounds without losing flexibility or compromising mechanical properties.

To buy nanotube products, please contact us. Price depends on the required volumes.

Material system
LSR, RTV
Working dosage
0.3–5 wt.%
Сoncentrate carrier
Polydimethylsiloxane
Shape
Paste

Benefits

Electrical сonductivity

Ensures permanent and uniform conductivity without “hot spots”

Retains сolor
  • Allows retention of color
  • No carbon release at the surface
Maintains mechanical properties

Minimises the impact on compound elasticity and tensile parameters, viscosity and rheological properties

Easy to use

Allows use of standard processing and mixing equipment



Cases

Anti-static / anti-dust silicone coating

click to view case

Anti-static RTV silicone part

click to view case

Anti-static silicone printing pads

click to view case

Video

Conductive RTV with TUBALL™ MATRIX - Processing guide


Documents

Also available in:
English
TDS TUBALL MATRIX 601 ENG V08.PDF
PDF204.8 kB
TUBALL MATRIX 601 602 PROCESSING KEY POINTS ENG V01.PDF
PDF102.4 kB
TUBALL MATRIX 601 602 613 BETA PROCESSING GUIDELINES ENG V06.PDF
PDF1.2 MB
