Anti-static additive for conductive melamine resin with maintained durability and color

TUBALL™ graphene nanotubes are a high-performance anti-static agent for melamine systems that avoids the frequently faced side-effects of standard conductive filler on durability and color of the final product.

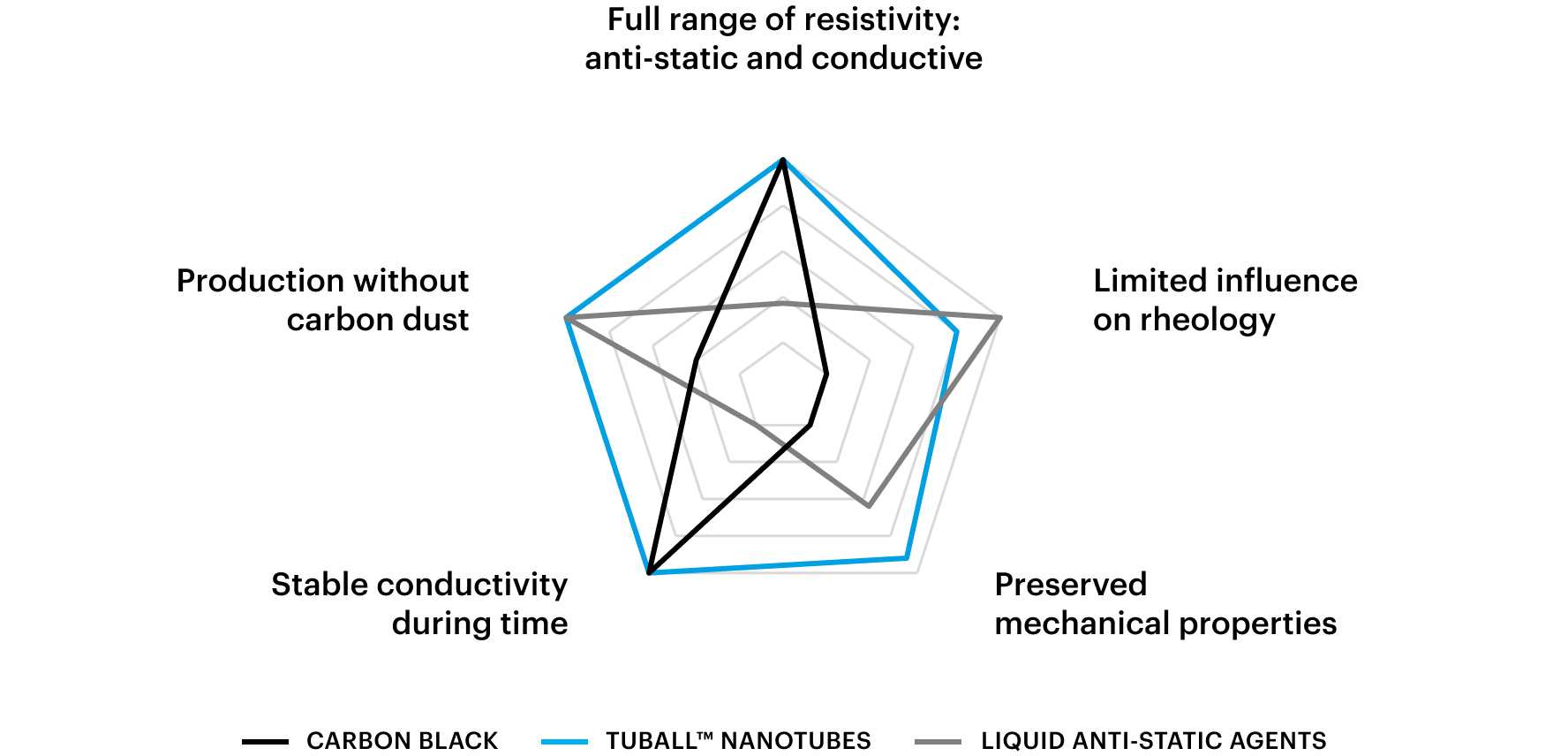

Anti-static agents: traditional vs TUBALL™

Note. This diagram provides average trends compared with other additives based on OCSiAl data. Product performance may vary depending on product type and formulation.

Thanks to their unique properties, graphene nanotubes (SWCNT) create a conductive, flexible, strong skeleton inside thermoset resins at extremely low concentration in comparison with most standard ESD additives.

For easy adaptation to a standard manufacturing process, OCSiAl has developed the TUBALL™ MATRIX line of industry-friendly concentrates. The ultra-low working loading – starting from 0.1% in the overall compound weight – has a minimal effect on other key properties and results in the cost-efficiency of this anti-static solution.

TUBALL™ MATRIX meets key technical requirements

Parameter Ammonium compounds Carbon black TUBALL™ MATRIX
Working dosage, wt.% 0.2–4 4–12 0.1–0.5
Resistivity range, Ω/sq 108–1011 105–1011 104–1011

Influence on mechanical performance

small negative strong negative none
Influence on rheology none strong negative acceptable
Color opportunity possible none possible
Application via spray technology possible challenging possible
Dust formation during production none high none
Resistivity independent of humidity no yes yes
Stable resistivity over time no yes yes

Results for optimized formulation based on OCSiAl data.

The most important characteristics of nanotube concentrates for use as an anti-static masterbatch in melamine formulations are:

  • Extremely low loading is required to get a full range of conductivity
  • Stable conductive properties throughout the service life
  • Simple adaptation of existing production processes thanks to a user-friendly concentrate form
  • No negative influence on the original color and durability of the end product

To get more details please refer to the product cards below or contact us.

Contact us to discuss your project specifications or to request a TUBALL™ MATRIX sample
