Anti-static and reinforcing agent for electrically conductive NBR


TUBALL graphene nanotubes are a high-performance anti-static agent and reinforcing filler for nitrile butadiene rubber. TUBALL makes it possible to create NBR compounds with stable conductivity and improved mechanical performance.

The most important feature of graphene nanotubes for NBR is the ability to impart stable conductive properties while avoiding most of the negative impacts on hardness and elongation that result from the use of standard anti-static agents, such as multiwall carbon nanotubes, most types of carbon black and polymer-based anti-static additives. The reason for this is graphene nanotubes’ unique properties, which allow them to create a reinforcing and conductive 3D network inside rubbers, even at extremely low working dosages, which also guarantee no carbon release on the surface of the material.

As little as 2% of TUBALL MATRIX concentrate, containing pre-dispersed nanotubes, is enough to significantly improve NBR compound mechanical properties and impart anti-static properties. TUBALL MATRIX was specially designed by OCSIAl to allow easy introduction of nanotubes without any changes to standard formulation.

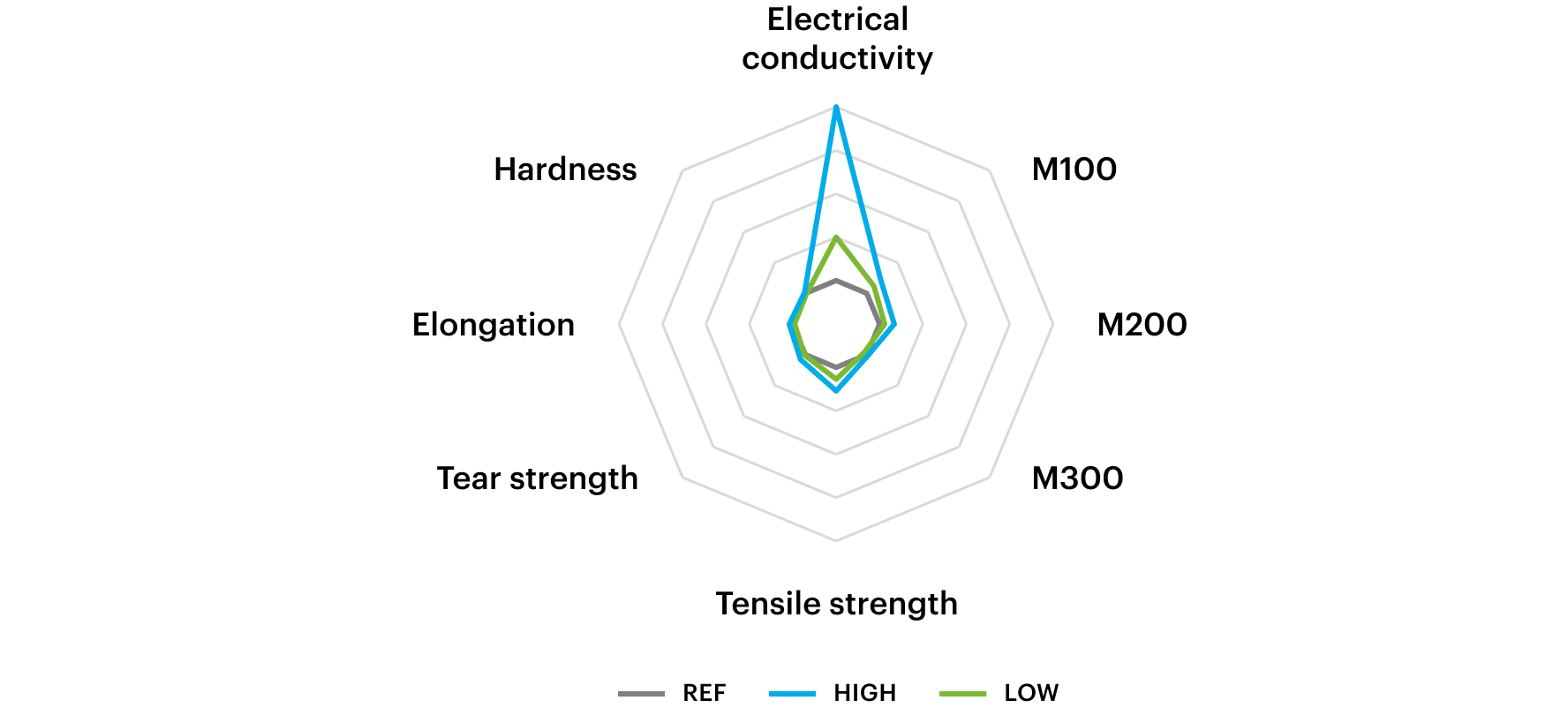

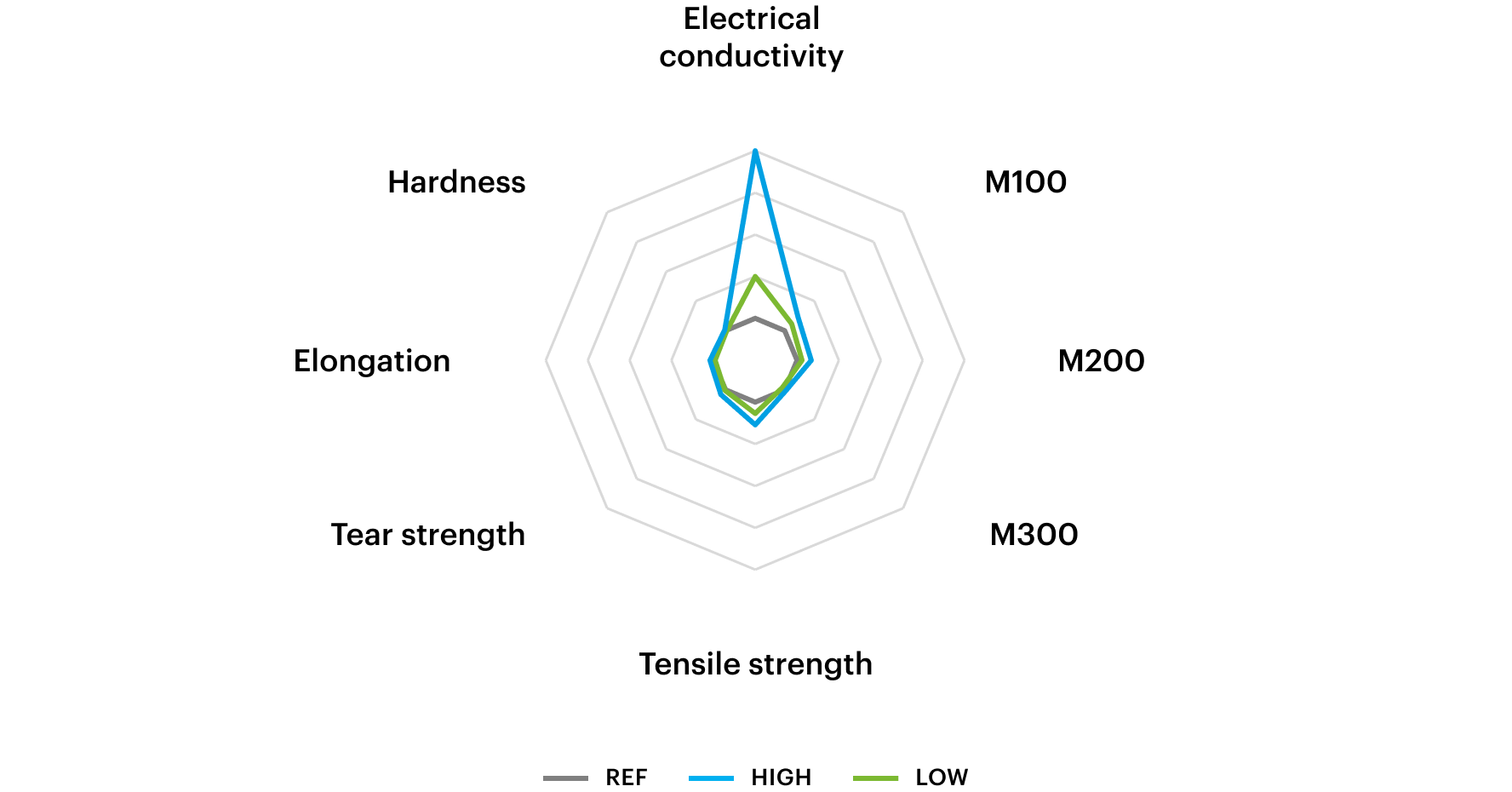

Anti-static NBR silica-based formulation

With 0.15% of graphene nanotubes

TUBALL MATRIX nanotube concentrate features for NBR compounds:

  • Anti-static performance of 107 Ω*cm
  • Modulus (M50-M300) improved by up to 50%
  • Tear strength improved by up to 35%
  • No negative impact on hardness or elongation
  • No carbon release to surface

To choose the right product for rubbers, please check the selection guide below and contact us to receive assistance with your request.

TUBALL MATRIX 600 series and TUBALL LATEX for elastomers

Product MATRIX 601 MATRIX 602 MATRIX 603 MATRIX 604/DOS beta MATRIX 605 MATRIX 608 beta MATRIX 610 MATRIX 614 MATRIX 615 beta MATRIX 618 LATEX H2O
Plasticizer Water + anionic surfac-tant
Polydimethyl-siloxane Siloxanes and silicones vinyl group-terminated TDAE oil Dioctyl sebacate fatty acid ester Siloxanes and silicones vinyl group-terminated Fluoro gum Polymer and paraffinic oil Polymer TDAE, Hydrocarbon resin, Polymer Synthetic ester, plasticizer
NR
SBR
IR
BR
EPDM
NBR, HNBR
FKM
PVC
LSR Silicone
HCR Silicone
RTV Silicone
PSA Silicone
NR latex
NBR, PU Latex

— Product available — Validation on going
